Brake Shoe Testing Fixture
Go / no-go gauging fixture for brake shoe dimensional inspection.
TypeGo / No-Go gauge fixture
ComponentBrake shoe
SpeedQuick-load for high volume
Fixtures & Tooling
Precision fixtures, gauges, and tooling components designed for repeatability and faster cycle times.
14 Models

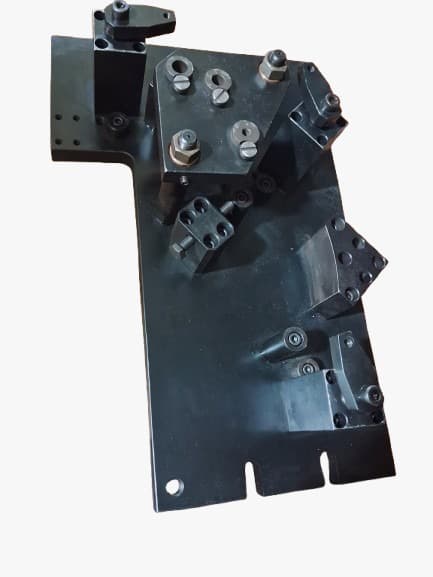

Brake Shoe Milling Fixture
Fixture for stable and repeatable brake shoe milling operations.
TypeMilling fixture
ComponentBrake shoe
UseRepeatable machining support

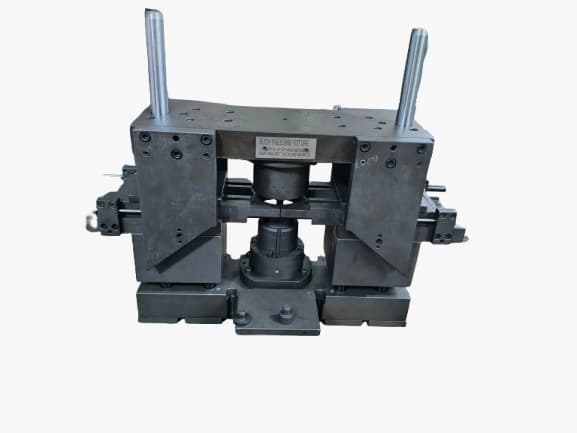

Bush Pressing Fixture
Fixture designed for controlled and aligned bush pressing.
TypePressing fixture
ComponentBush
FunctionAlignment and support

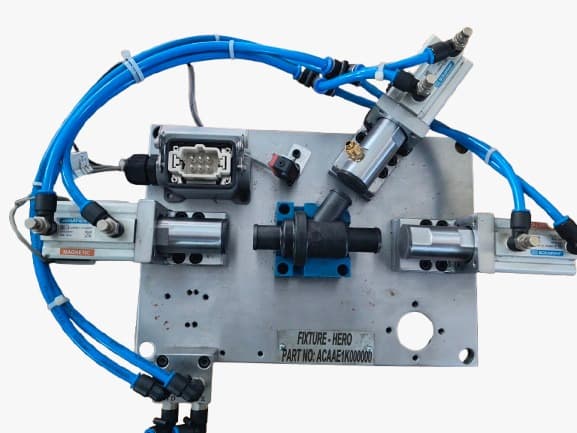

Testing Fixture
General-purpose testing fixture for production inspection setups.
TypeTesting fixture
ApplicationInspection setup
FunctionRepeatable positioning

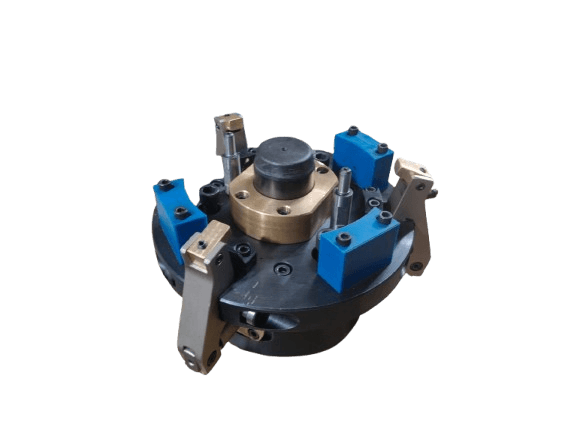

CNC Lathe Fixture
Lathe fixture for secure and repeatable CNC turning operations.
TypeLathe fixture
MachineCNC lathe
FunctionSecure work-holding
Front Housing VMC Fixture
VMC fixture for master cylinder front housing machining.
ComponentMaster Cylinder front housing
OperationFace machining + drilling
Capacity4 components at a time

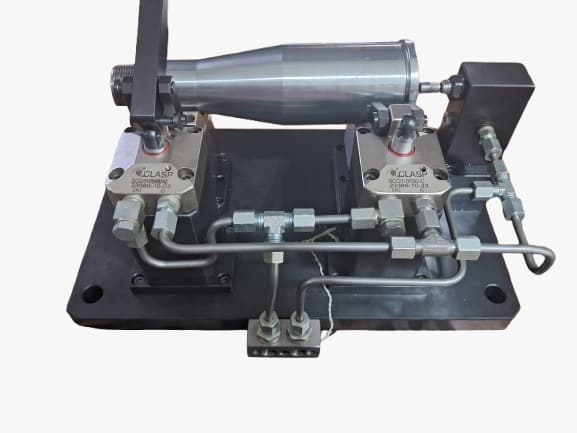

Shaft Milling VMC Fixture
VMC fixture built for shaft milling with secure alignment.
TypeVMC milling fixture
ComponentShaft
MachineVertical Machining Centre

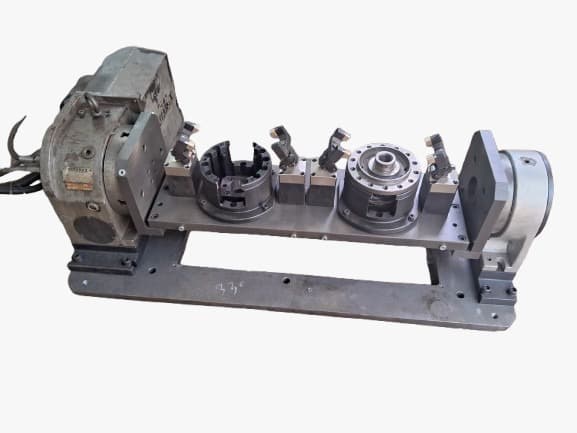

VMC 4th Axis Fixture
Fixture optimized for indexed machining on VMC 4th-axis setups.
Type4th axis fixture
MachineVMC
FunctionIndexed machining support

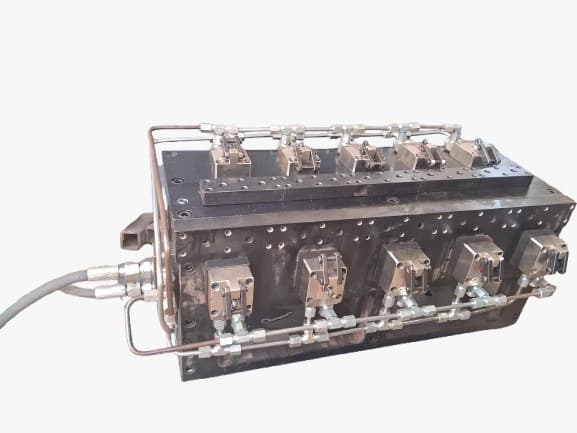

VMC Milling Fixture
General VMC fixture for precision milling operations.
TypeMilling fixture
MachineVMC
FunctionPrecision work-holding

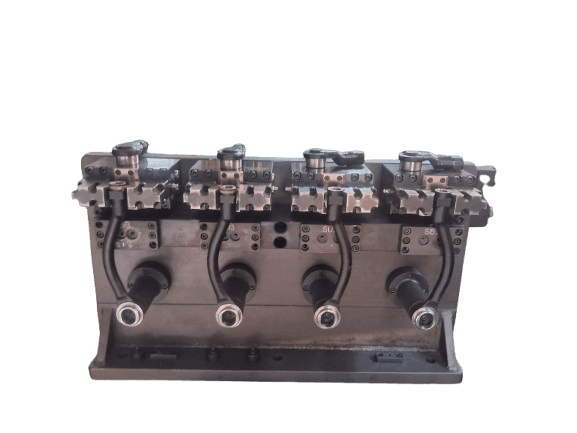

VMC Self Centering Fixture
Self-centering VMC fixture for quick and accurate positioning.
TypeSelf-centering fixture
MachineVMC
FunctionAutomatic workpiece centering

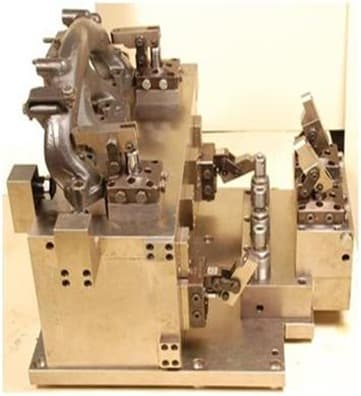

Exhaust Manifold Machining Fixture
Fixture for exhaust manifold spot facing and drilling operations.
ComponentExhaust manifold
OperationSpot facing + drilling
MaterialCast iron base with hardened bush inserts

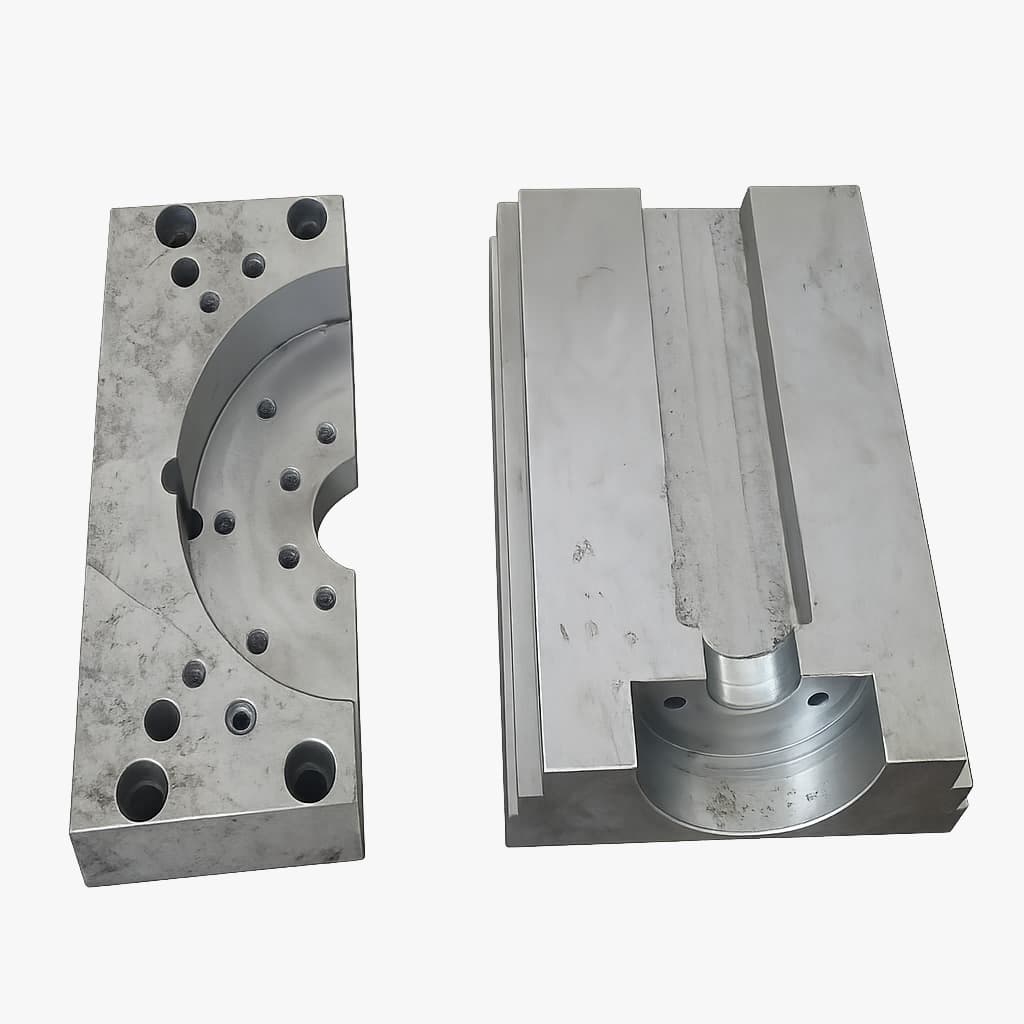

Clamp Blocks
Hardened and ground clamp blocks for machining and assembly work-holding.
MaterialEN31 hardened & ground
Tolerance+/-0.005 mm
FinishGround finish

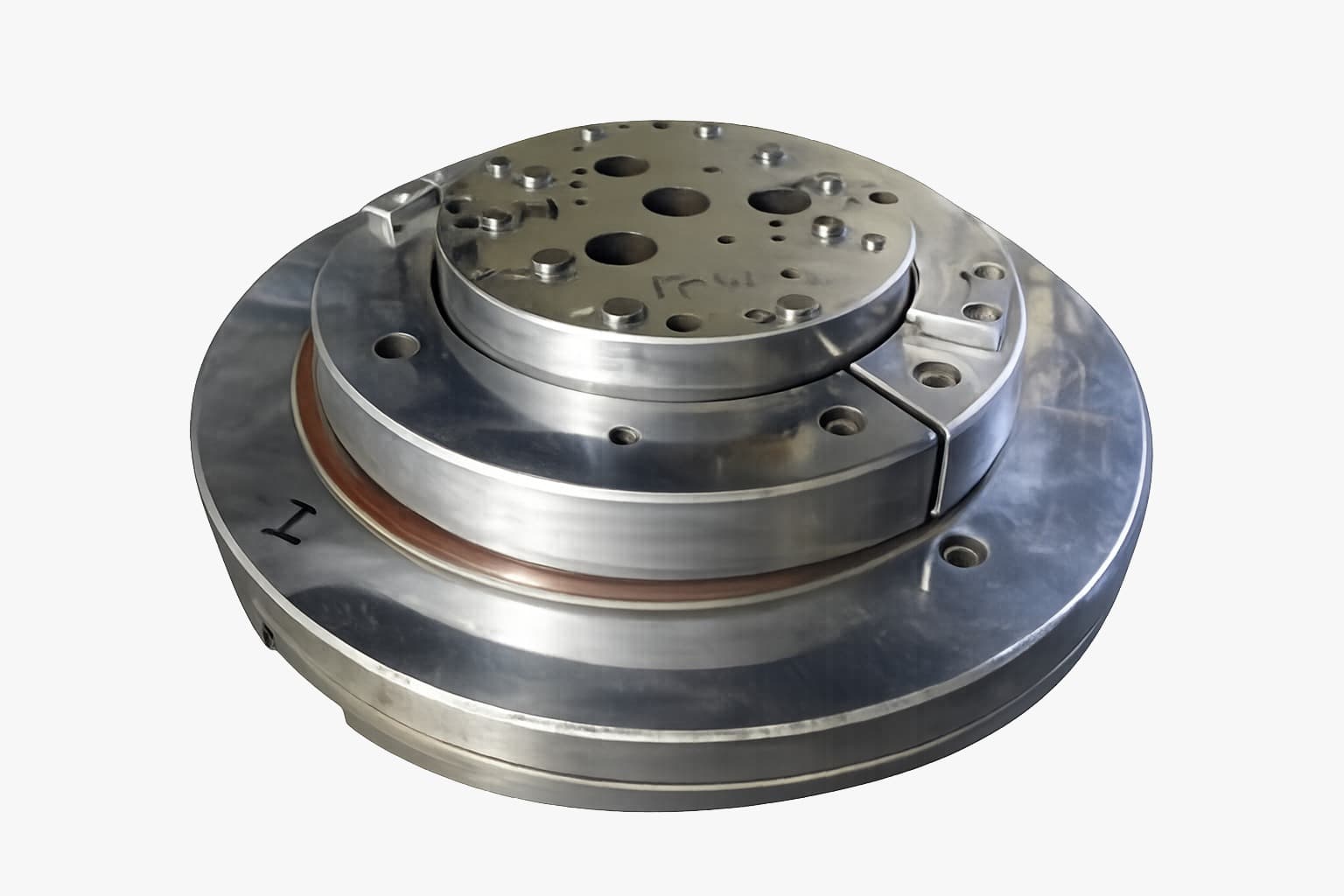

Press Tool Components
Punches, dies, stripper plates, and guide elements built to drawing.
ComponentsPunch, die, stripper, guide pillars
MaterialD2 / H13 tool steel
TreatmentHardened & ground

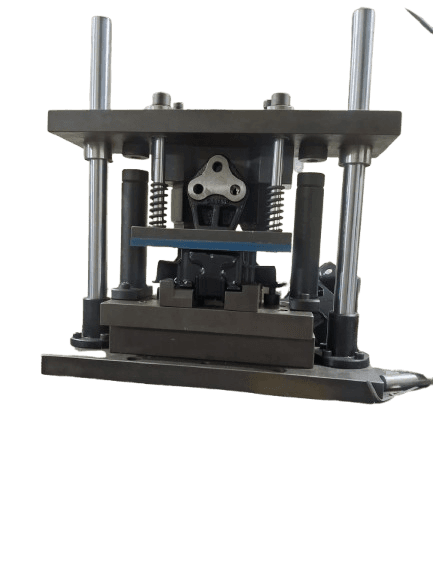

Rubber Bush Fixture
Machine for controlled rubber bush pressing applications.
TypePressing machine
ComponentRubber bush
FunctionControlled insertion
